On-Demand
Rev Steel
ø 83 flat burrs

The ideal grinder for espresso blends that provides a great balance between body and flavor clarity.
Ground temperature stability.
Weight precision.
Granulometry consistency.


83 mm steel flat burrs with lifespan of 900 kg.

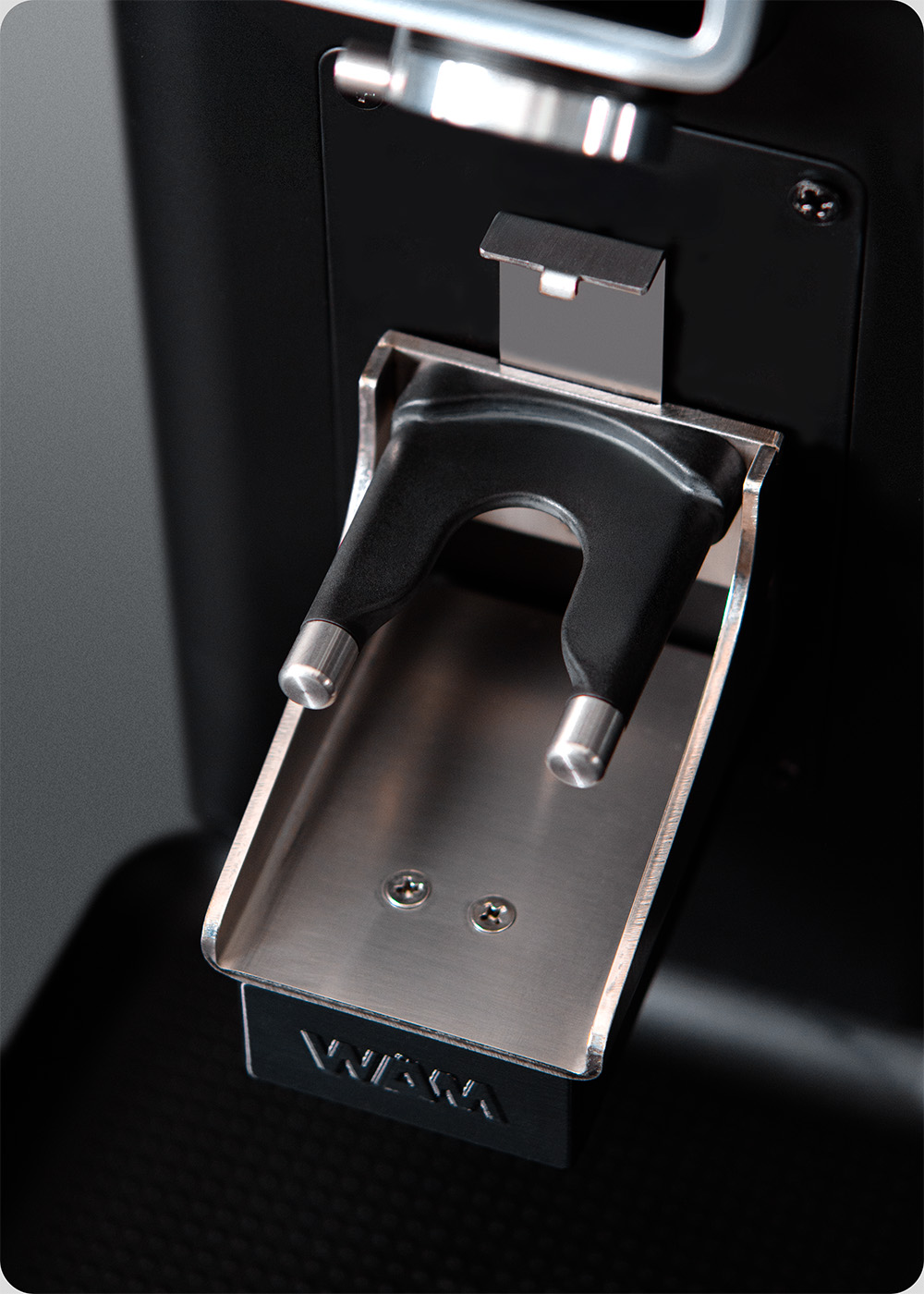

Consistent weight aids in building and monitoring flavour recipes. The Rev Series feature an interchangeable weight module that can be mounted in under two minutes, even post grinder installation.

The grinder features a counteracting system that expands in the opposite direction of the burrs, neutralizing the effect of heat expansion. This ensures a consistent particle size at any pace, preserving the same flavor profile.
Stable and low coffee grounds temperature is key for consistent flavor extraction.
1. 2,5 kg heat sink around the burrs to constantly remove large amounts of heat.
2. Shaft separates burrs from motor to prevent heat transmission.
3. Insulation to prevent heat transmission through the shaft.
4. Active internal airflow management to support temperature stability at any pace.


Grinder built to prevent vibration transmission and noise emissions.
1. 2,5 kg grind chamber for higher noise insulation.
2. Rubber rings to reduce noise propagation.
3. Motor separated from burrs to prevent vibration transmission.
4. Motor mounted on suspension system reduces vibration emission.
Advanced Leveling Intelligent Grinding Nexus

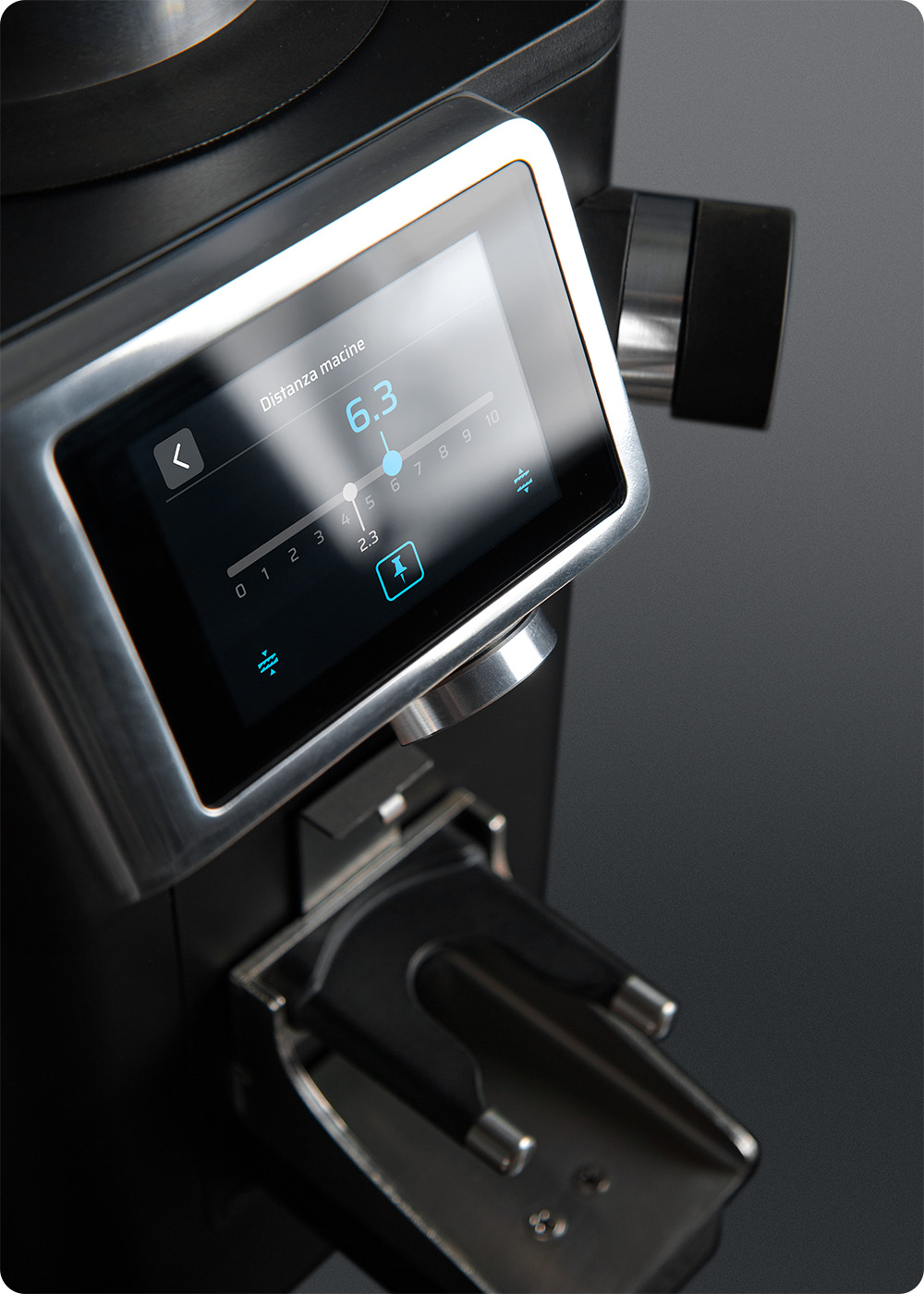

High-precision stepless adjustment with display for a digital, intuitive, and quick reading of the grind setting.
Discover the Rev Series!

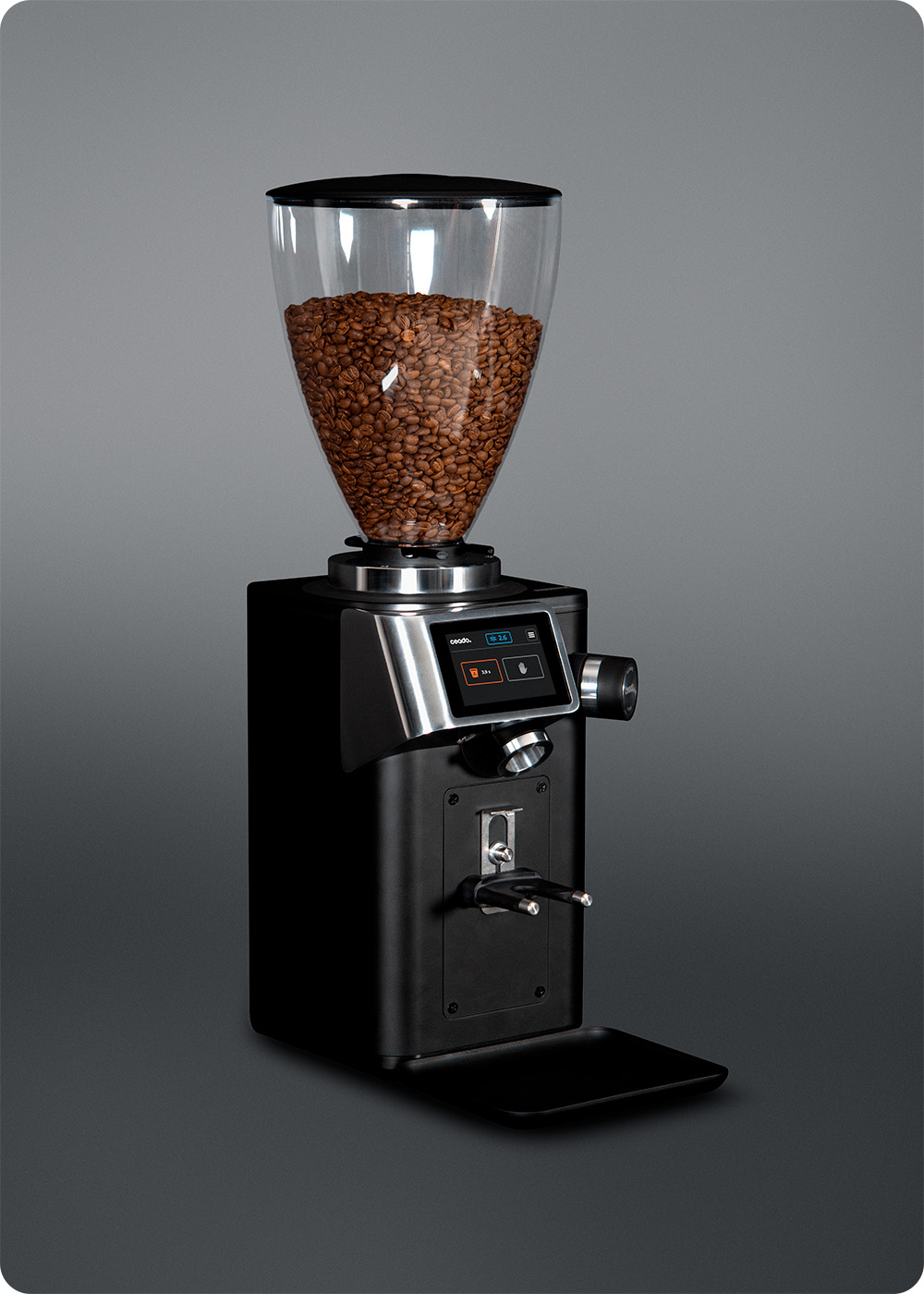

Rev Steel
- Voltage 220-240 V • 50-60 Hz / 500 W 110-120 V • 60 Hz / 5 A
- Rpm 50hz/60hz 1480 / 1700 rpm
- Average output (g/s)
calculated at standard
Italian Espresso Consistency 4 (50 Hz) / 5 (60 Hz) - Net weight 14,4 kg
- Gross weight 16,2 kg
- Dimensions 200 x 270 x 590h mm
- Burrs C83 ø 83 flat burrs*
- Hopper capacity Approximately 1600 g
- Dose setting Digital with grind reference on display
- Display Multifunction Touch
- Note *Red speed burrs available.
