On-Demand

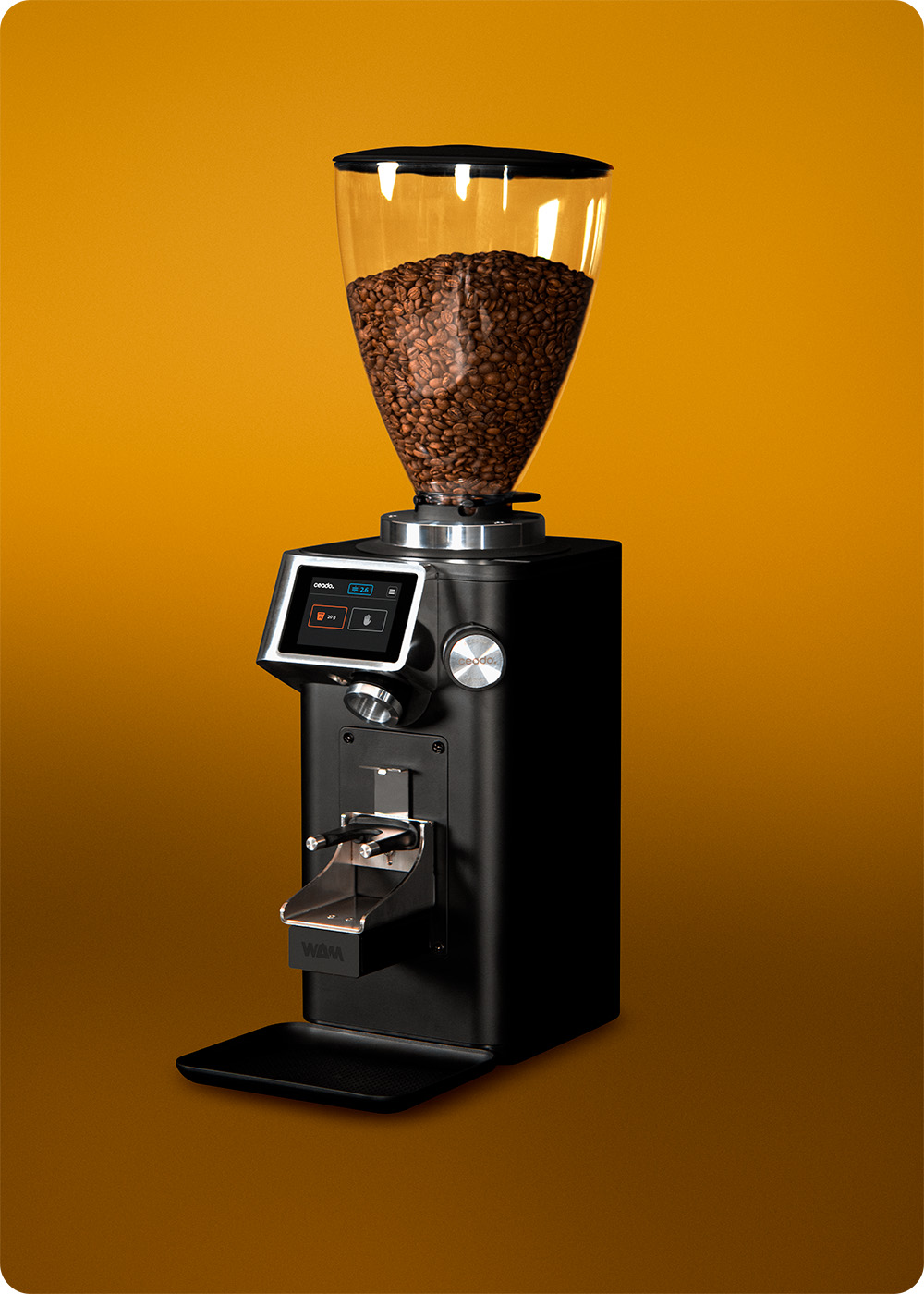

Rev Titan
ø 83 HP Titanium flat burrs
The ideal grinder for high-volume environments, enhancing body perception even in milk-based drinks.
Ground temperature stability.
Weight precision.
Granulometry consistency.
High productivity 83 mm TIN coated burrs with lifespan of 2,5 tons.

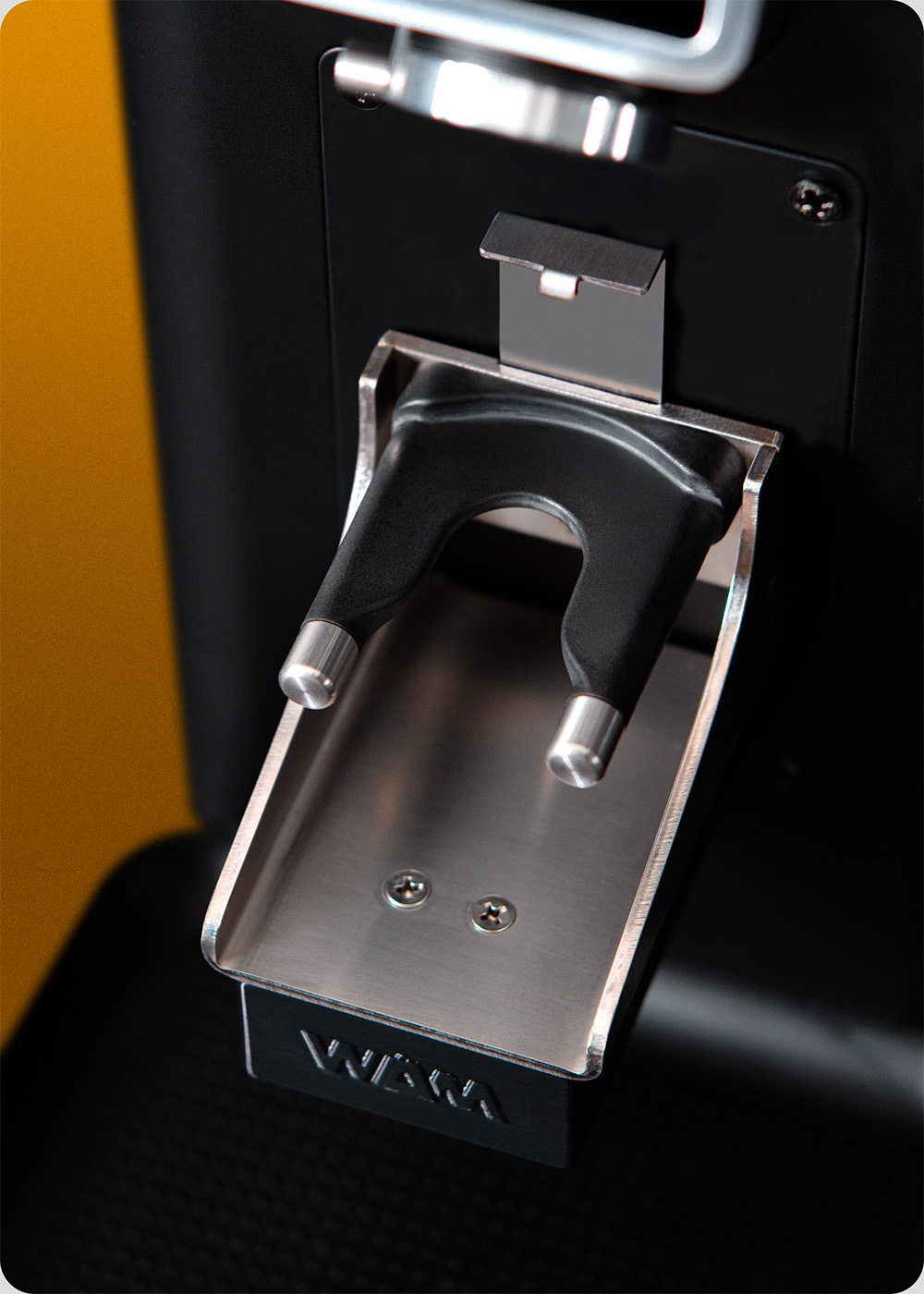

Consistent weight aids in building and monitoring flavour recipes. The Rev Series feature an interchangeable weight module that can be mounted in under two minutes, even post grinder installation.
The grinder features a counteracting system that expands in the opposite direction of the burrs, neutralizing the effect of heat expansion. This ensures a consistent particle size at any pace, preserving the same flavor profile.
Stable and low coffee grounds temperature is key for consistent flavor extraction.
1. 2,5 kg heat sink around the burrs to constantly remove large amounts of heat.
2. Shaft separates burrs from motor to prevent heat transmission.
3. Insulation to prevent heat transmission through the shaft.
4. Active internal airflow management to support temperature stability at any pace.
Grinder built to prevent vibration transmission and noise emissions.
1. 2,5 kg grind chamber for higher noise insulation.
2. Rubber rings to reduce noise propagation.
3. Motor separated from burrs to prevent vibration transmission.
4. Motor mounted on suspension system reduces vibration emission.
Advanced Leveling Intelligent Grinding Nexus

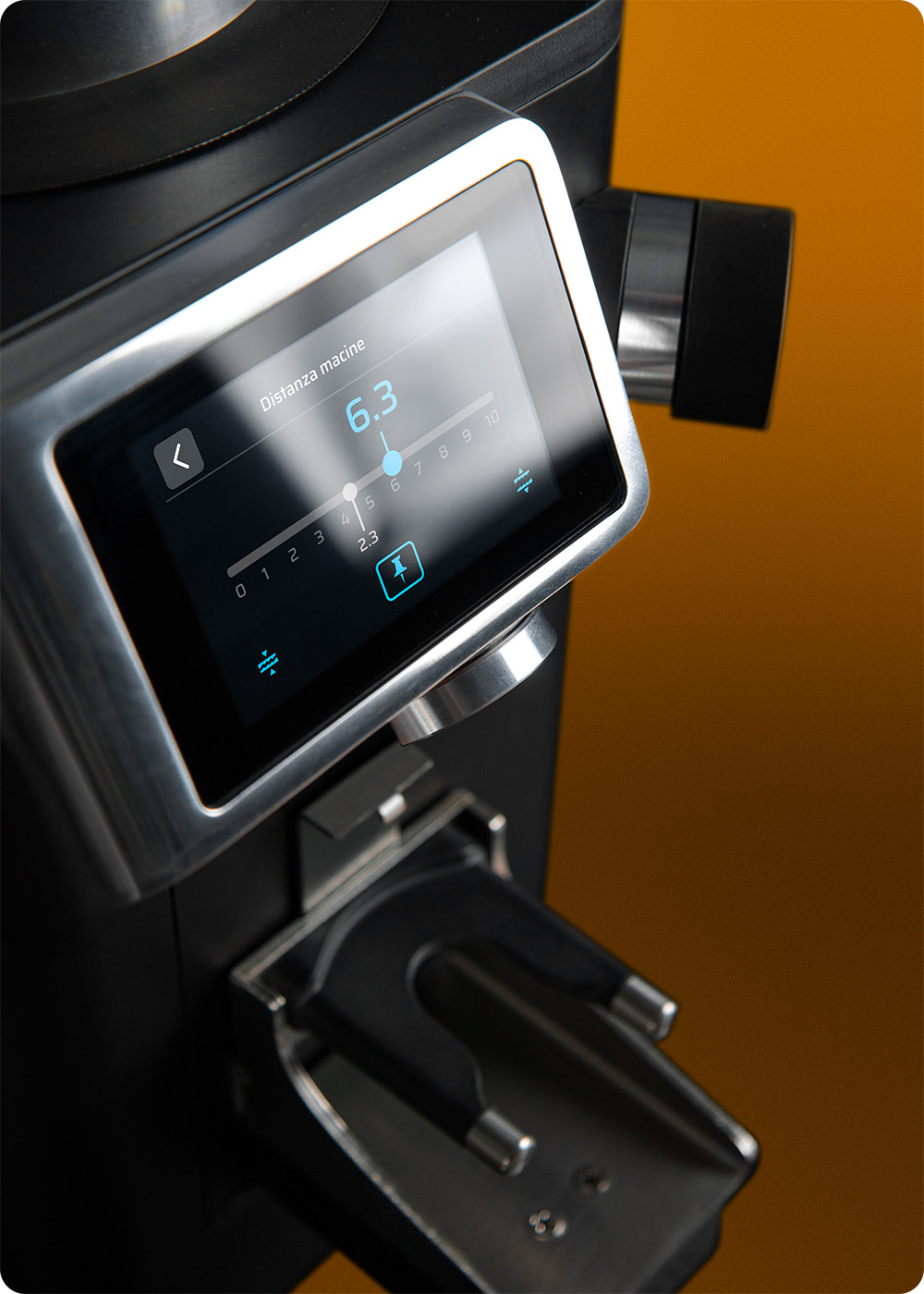

High-precision stepless adjustment with display for a digital, intuitive, and quick reading of the grind setting.
Discover the Rev Series!
Rev Titan
- Voltage 220-240 V • 50-60 Hz / 740 W 110-120 V • 60 Hz / 6 A
- Rpm 50hz/60hz 1480 / 1700 rpm
- Average output (g/s)
calculated at standard
Italian Espresso Consistency 5 (50 Hz) / 6 (60 Hz) - Net weight 17 kg
- Gross weight 18,8 kg
- Dimensions 200 x 270 x 630h mm
- Burrs HPT83 ø 83 HP Titanium flat burrs*
- Hopper capacity Approximately 1600 g
- Dose setting Digital with grind reference on display
- Display Multifunction Touch
- Note *NSF version uses Steel burrs.
